8 x 10/100/1000Base-T RJ45 ports Unmanaged Industrial Ethernet Switch
- Ask for a Quotation
- 5-Year Warranty
Description

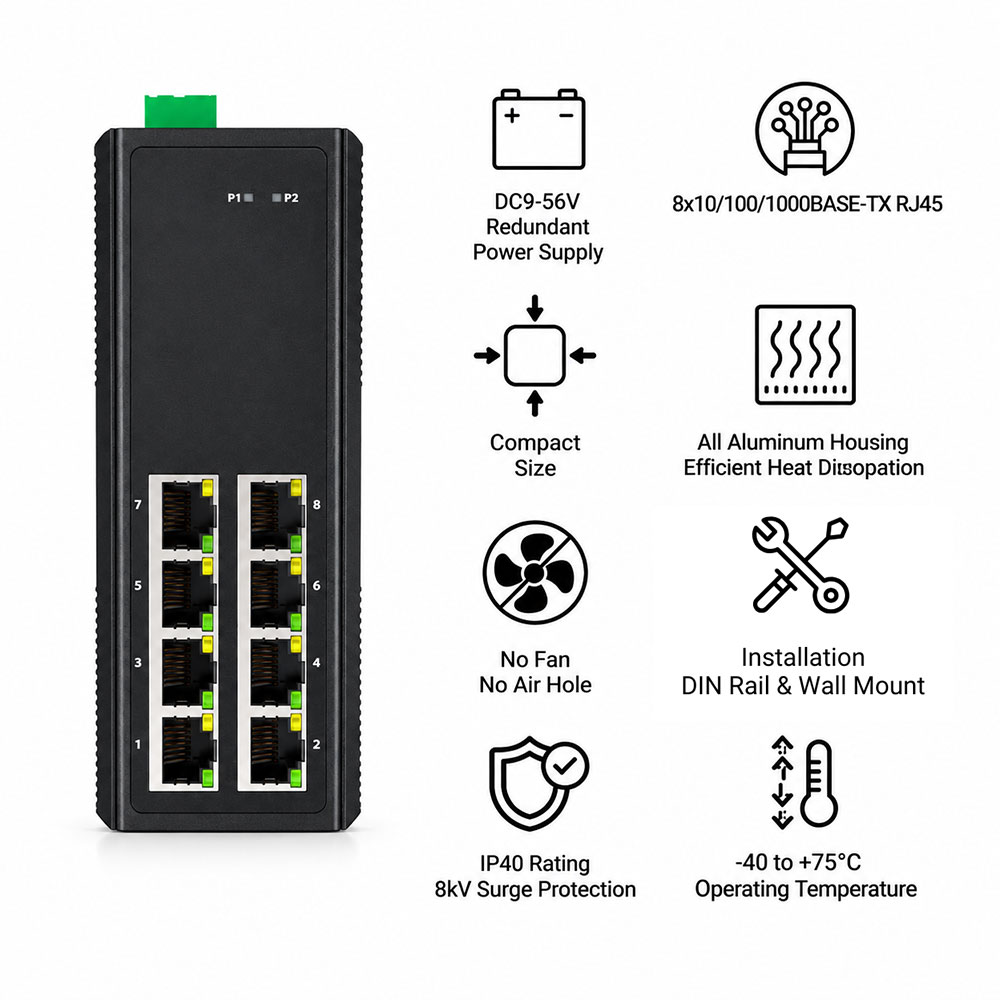

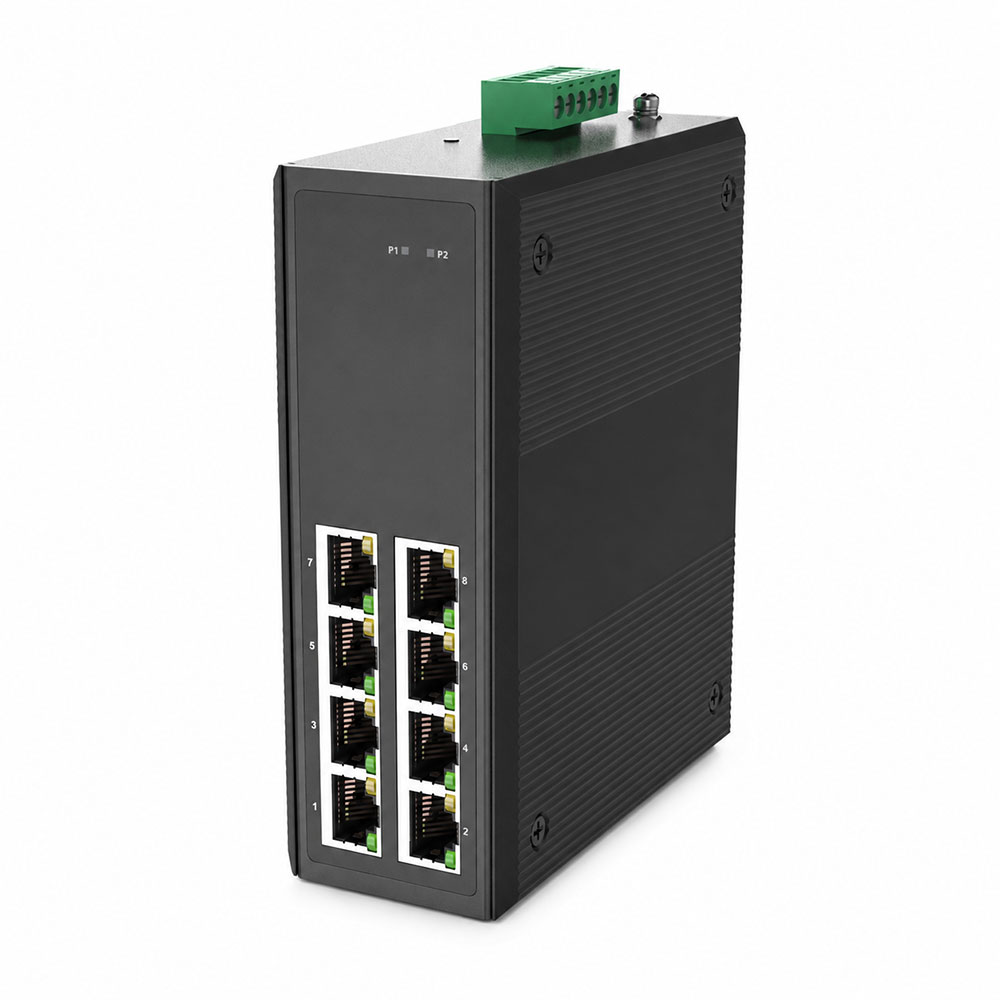

8 x 10/100/1000Base-T RJ45 ports Unmanaged Industrial Ethernet Switch
The switch is an unmanaged industrial grade Ethernet switch with 8-port 10/100/1000Base-T RJ45 ports (No.8 can be uplink port). It is featuring with port isolation, flow control, QoS(1-2 ports) and broadcast storm restrain, which all can be configured by the Dip switch on the top panel.
It is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, such as wide range power input 12-58VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from-40℃ ~+75℃ as well as high-level EMI/EMC capability and so on. It is the best choice for heavy industrial factory,transportation, oil & gas, chemical,IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications.
Features
➢ 8*10/100/1000M RJ45 ports(No.8 is uplink port)
➢ DC12~58V input, redundant powersupply with polarity reverse/over-voltage protection
➢ Dip switch function: 1.Port isolation; 2. Flow control; 3. QoS; 4. Broadcast storm restrain
➢ Support 10K Bytes Jumbo frame
➢ Support4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
➢ IP40 fan-less andDin-rail hardware design
➢ Operation temperature:-40 ℃ ~+75℃
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
