8 x 10/100/1000Base-T, 2 x 1000Base-X SFP Unmanaged Industrial Ethernet Switches
- Ask for a Quotation
- 5-Year Warranty
Description
Unmanaged Industrial Ethernet Switches, 8 x 10/100/1000Base-T， 2 x 1000Base-X SFP

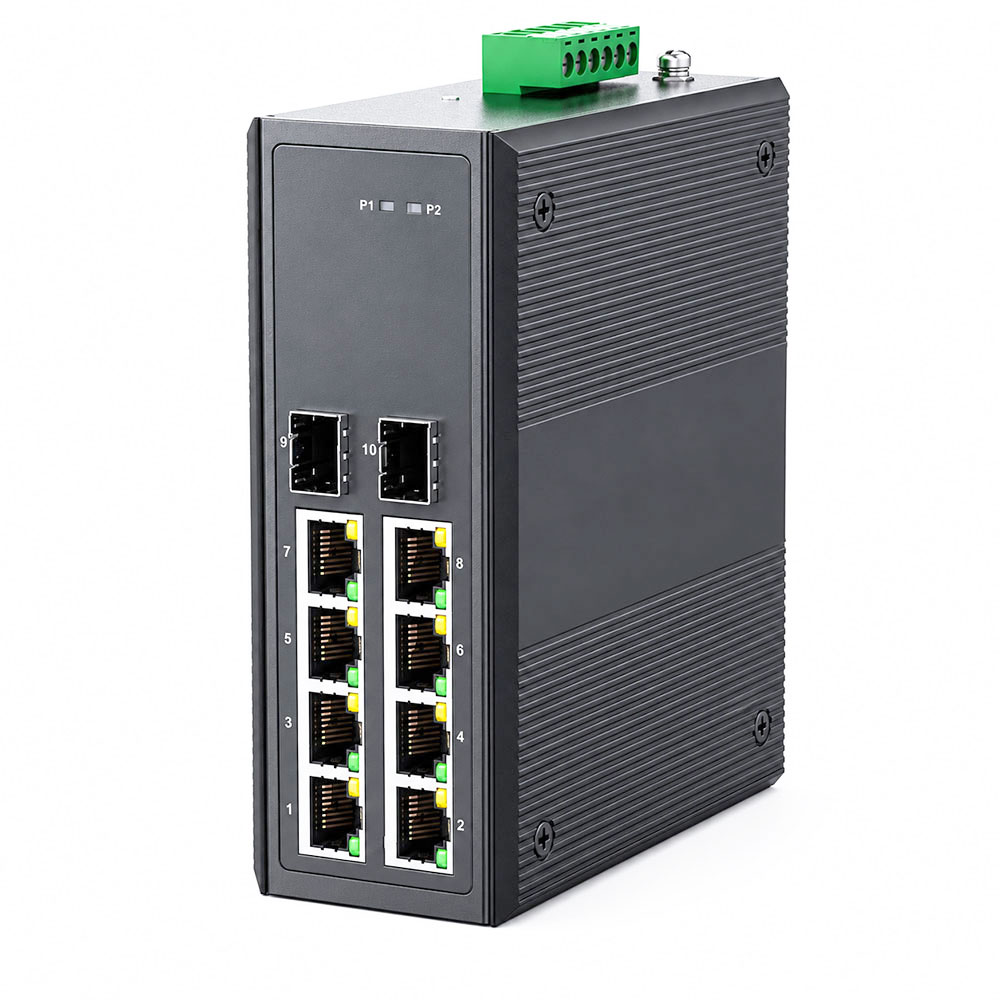

CIS-5208U is an unmanaged industrial Ethernet switche equipped with 8-port 10/100/1000Base-T RJ45 interfaces and 2-port 1000Base-X Gigabit fiber interfaces. With 2Mbit packet buffer, 20Gbps switching capacity and store-and-forward switching architecture, the switches ensure wire-speed forwarding on all ports and smooth transmission of high-bandwidth services such as 4K video.
CIS-5208U supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az and IEEE 802.3ah standards. They feature redundant dual DC power inputs or optional single AC power supply, with reverse polarity and over-current protection. Designed for harsh industrial environments, the switches provide a rugged IP40-rated metal enclosure, fan-less low-power design, DIN-rail mounting, wide operating temperature range from -40°C to 75°C, and industrial-grade surge and ESD protection.
It is ideal for industrial automation, transportation systems, factory networks, video surveillance, energy, and other demanding industrial Ethernet applications.

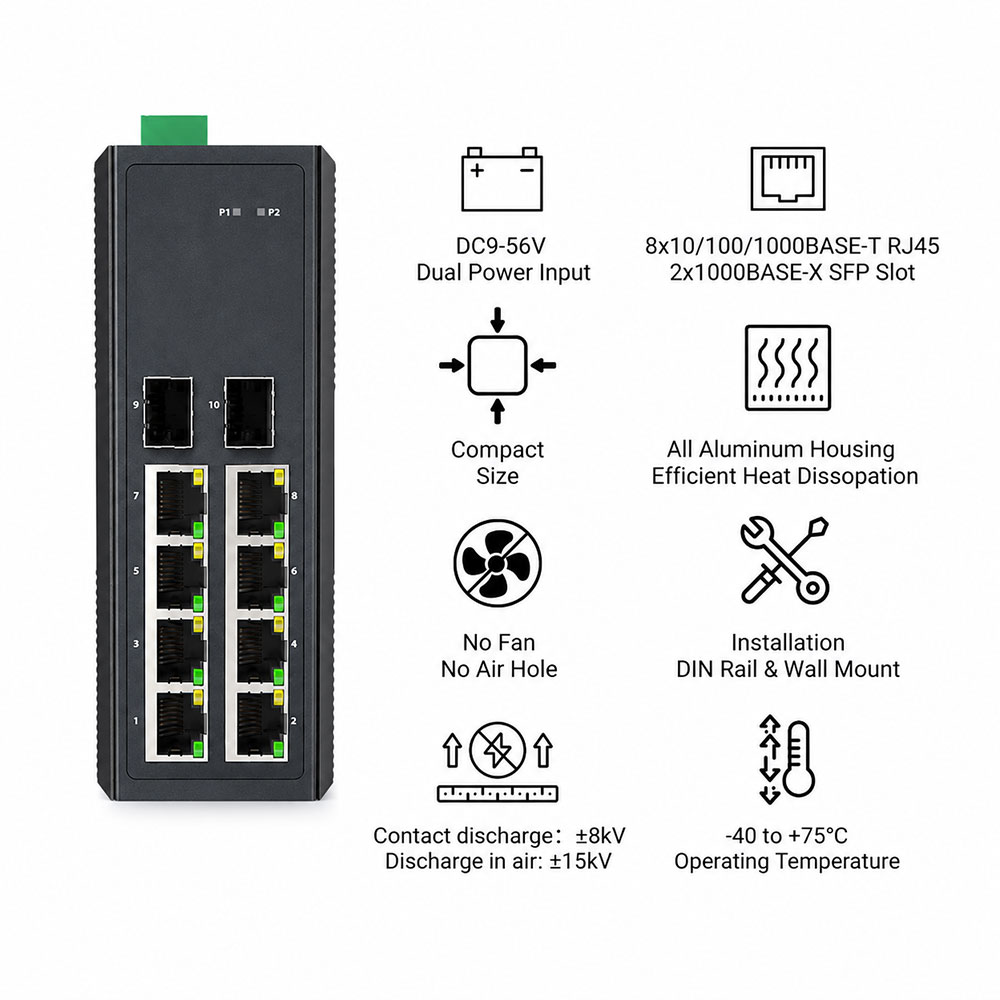

Features
➢ 8*10/100/1000M RJ45 ports, 2*1000Base-X SFP fiber ports
➢ Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az and IEEE 802.3ah standards
➢ 2Mbit packet buffer and 20Gbps switching capacity
➢ DC9~56V input, redundant power supply with polarity reverse/over-current protection
➢ Support 9K Bytes Jumbo frame
➢ Store-and-forward switching architecture with wire-speed forwarding
➢ Support 6KV surge protection and ESD: Air-8kV, Contact-6kV Protection
➢ IP40 fan-less andDin-rail hardware design
➢ Operation temperature:-40°C to +75°C
