8 x 10/100/1000Base-T, 8 x 1000Base-X SFP Unmanaged Industrial Ethernet Switches
- Ask for a Quotation
- 5-Year Warranty
Description
8 x 10/100/1000Base-T ，8 x 1000Base-X SFP Unmanaged Industrial Ethernet Switches

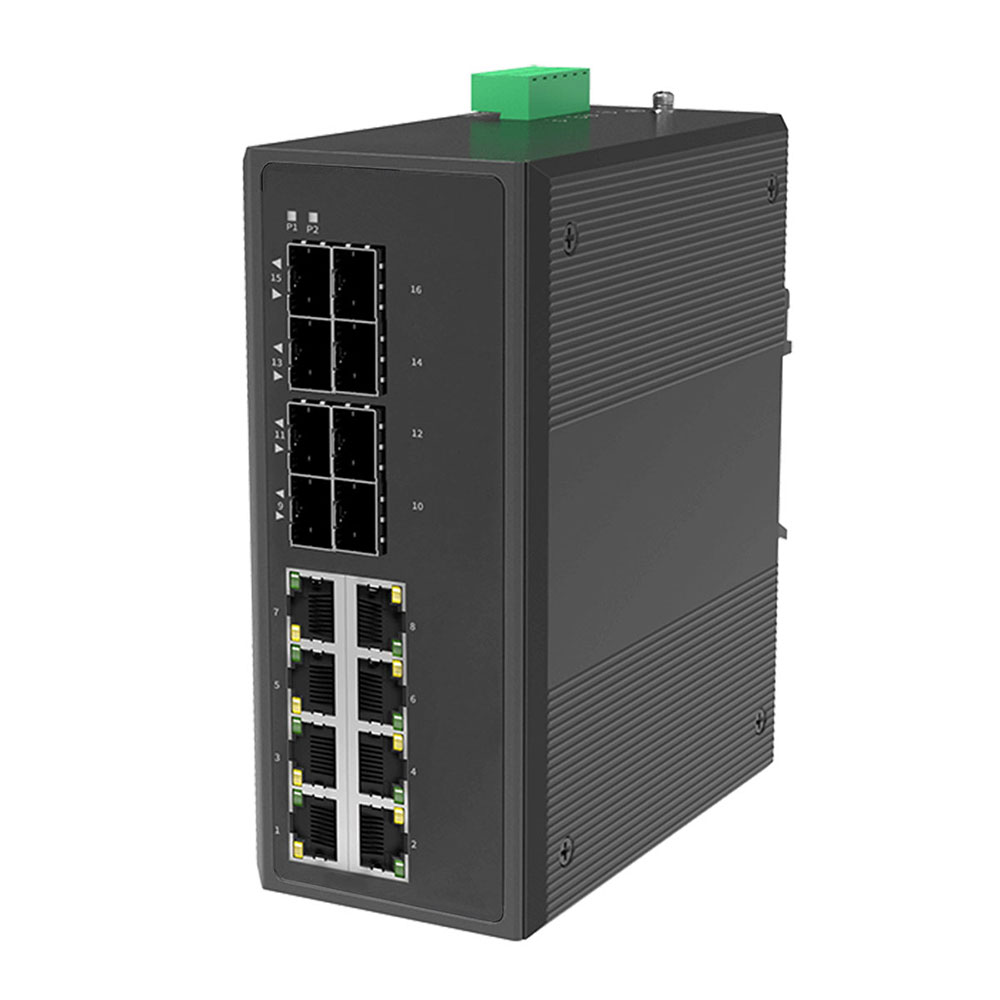

CIS-5808U is an unmanaged industrial Ethernet switch equipped with 8-port 10/100/1000Base-T RJ45 interfaces and 8-port 1000Base-X SFP fiber interfaces. With 4Mbit packet buffer, 56Gbps switching capacity and store-and-forward switching architecture, the switch ensures wire-speed forwarding on all ports and smooth transmission of high-bandwidth services such as 4K video.
CIS-5808U supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az and IEEE 802.3ah standards. It features 8K MAC address table and supports up to 10K Bytes Jumbo Frame transmission. The switch is designed with industrial-grade protection, including redundant DC power input with reverse polarity and over-current protection. Its IP40-rated fanless metal enclosure, DIN-rail mounting design, wide operating temperature range of -40°C to 75°C, and high reliability make it ideal for industrial automation, intelligent transportation, oil & gas, power utilities, security surveillance and other harsh industrial environments.
Features

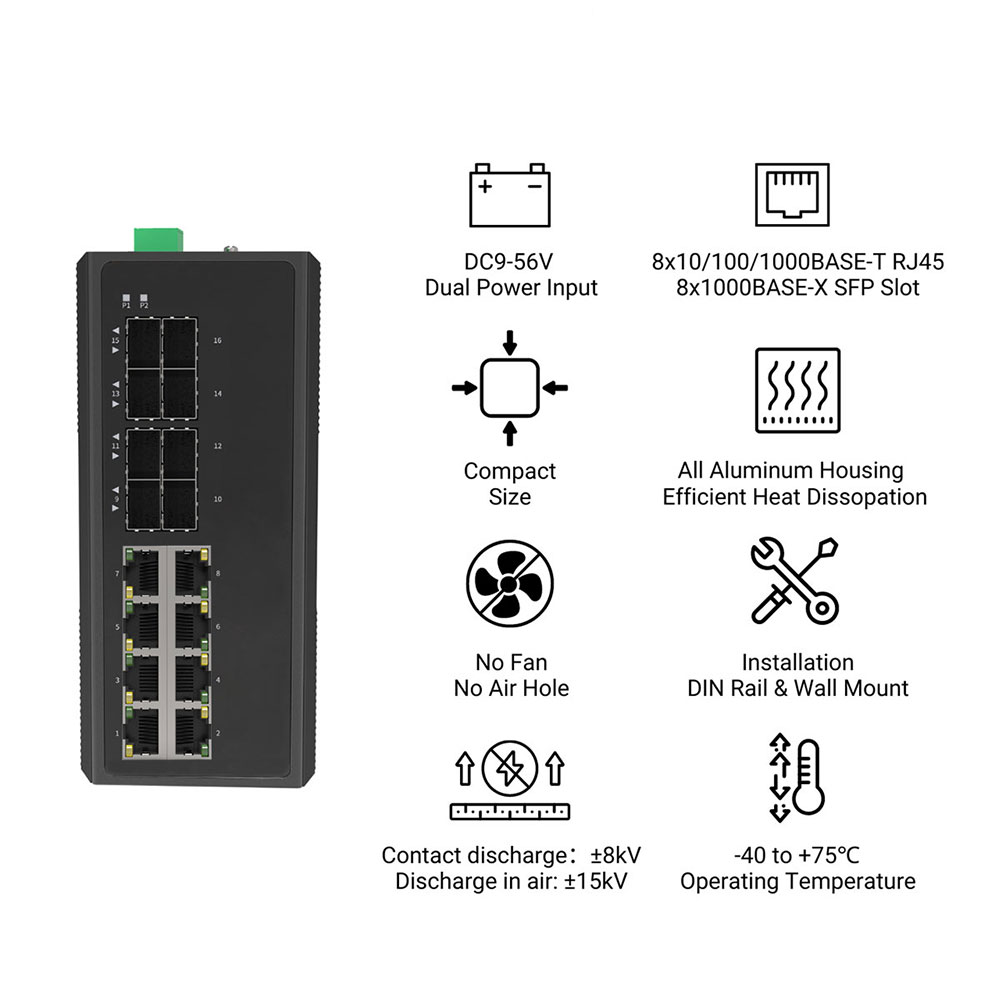

➢ 8*10/100/1000M RJ45 ports, 8*1000Base-X SFP fiber ports
➢ Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az and IEEE 802.3ah standards
➢ 56Gbps switching capacity with 4Mbit packet buffer for wire-speed forwarding
➢ Store-and-forward switching architecture
➢ Support 10K Bytes Jumbo Frame
➢ 8K MAC address table
➢ Forwarding latency < 7μs
➢ DC9~56V input, redundant powersupply with polarity reverse/over-current protection
➢ Support 6KV surge protection and ESD: Air-8kV, Contact-6kV Protection
➢ IP40 fan-less andDin-rail hardware design
➢ Operation temperature:-40°C to +75°C
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
