48 x 1GB RJ45, 6 x 1G/10GBase-X SFP+, Layer 2 Managed POE Ethernet Switch
- Ask for a Quotation
- 5-Year Warranty
Description
48 x 10/100/1000Base-T , 6 x 1G/10GBase-X SFP+, Layer 2 Managed Rack-mount POE Ethernet Switch

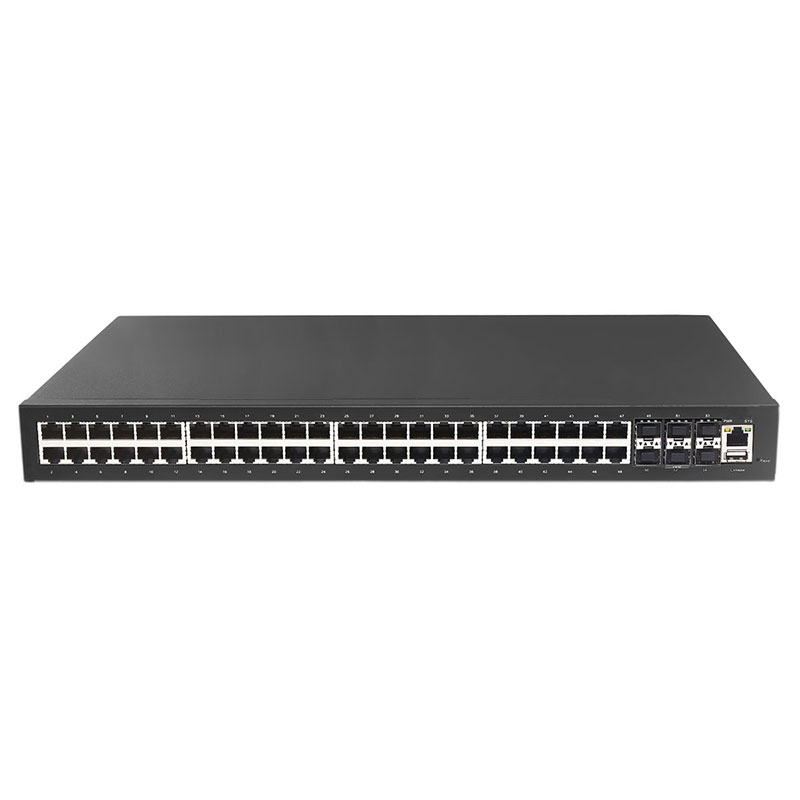

CCS-8648MP is a high-performance managed Ethernet switch equipped with 48×10/100/1000BASE-T RJ45 ports and 6×1/10G SFP+ slots. It provides a non-blocking switching capacity of 216Gbps, forwarding rate of 160.7Mpps and 16Mbits packet buffer, ensuring stable wire-speed forwarding for enterprise and carrier Ethernet applications.
CCS-8648MP supports comprehensive Layer 2 switching features including IEEE 802.1Q VLAN, QinQ (IEEE 802.1ad Provider Bridging), STP/RSTP/MSTP, storm control, QoS traffic classification and multicast management. Advanced security mechanisms such as IEEE 802.1X, RADIUS and TACACS+ authentication help ensure secure network access and operation.
CCS-8648MP provides up to 48 IEEE 802.3af/at PoE ports with a total PoE power budget of 800W and up to 30W output per port. The switch supports multiple management methods including Console, Telnet, SSH and Web management for convenient deployment, configuration and maintenance.
Features:
➢ 48*10/100/1000Base-T, 6*1G/10GBase-X SFP+
➢ PoE support on ports 1~48, compliant with IEEE 802.3af/at
➢ Up to 30W PoE output per port
➢ 216Gbps switching capacity, 160.7Mpps forwarding rate
➢ 16Mbits packet buffer, 32K MAC address table
➢ Store-and-forward switching architecture
➢ IEEE 802.1Q VLAN and IEEE 802.1ad QinQ support
➢ STP/RSTP/MSTP spanning tree protocols
➢ Storm control for broadcast, unknown unicast and unknown multicast traffic
➢ Advanced QoS with priority remarking and traffic classification based on VLAN, MAC, IP and priority fields
➢ IEEE 802.1X authentication, RADIUS and TACACS+ security mechanisms
➢ IEEE 802.3x flow control and back pressure support
➢ Console, Telnet, SSH and Web management interfaces
➢ AC 100~240V power input
➢ Surge protection: ±6kV DC, ±6kV RJ45
➢ IP30 fan-less metal housing, 19-inch rack-mount design
➢ Operation temperature: 0°C to +50°C
