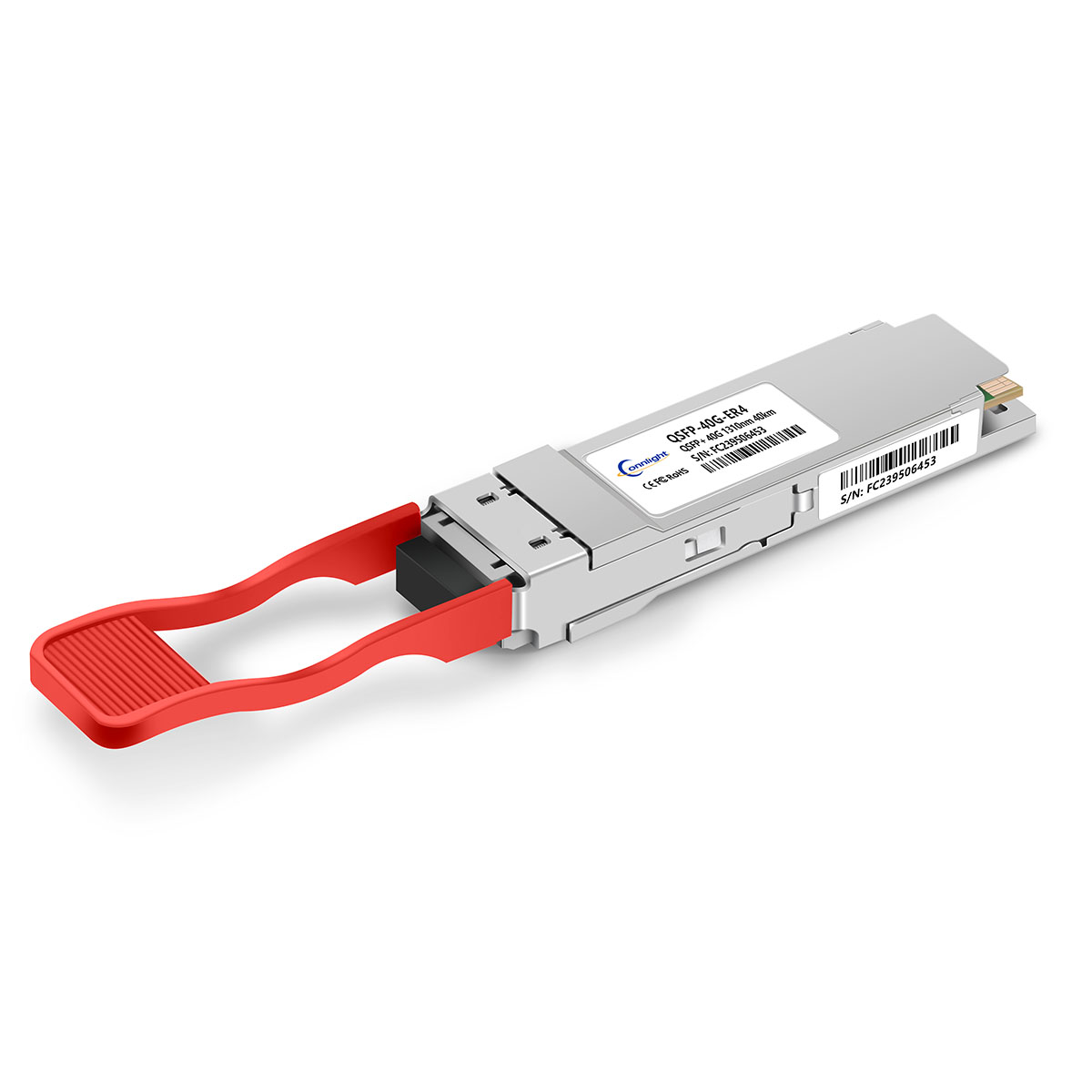

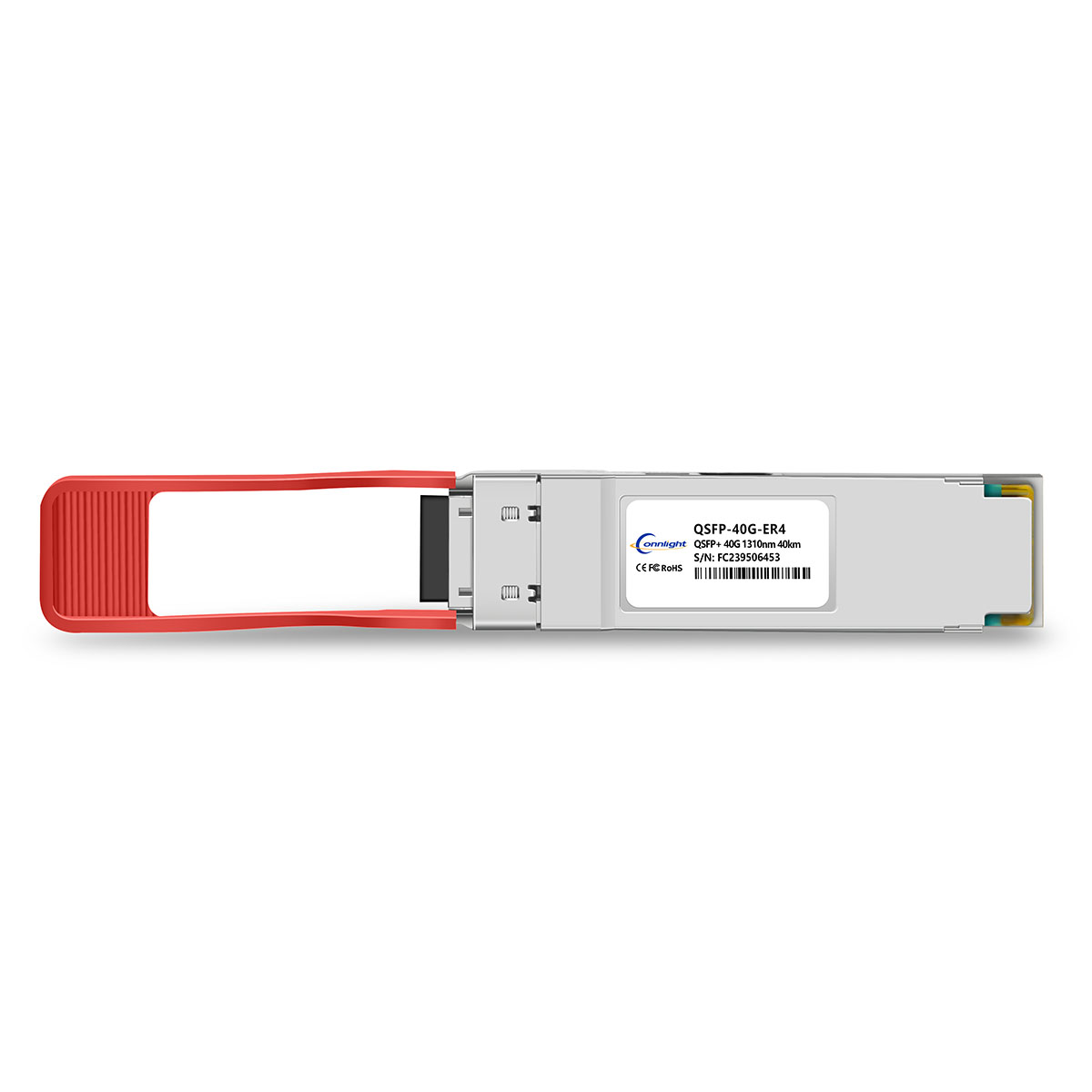

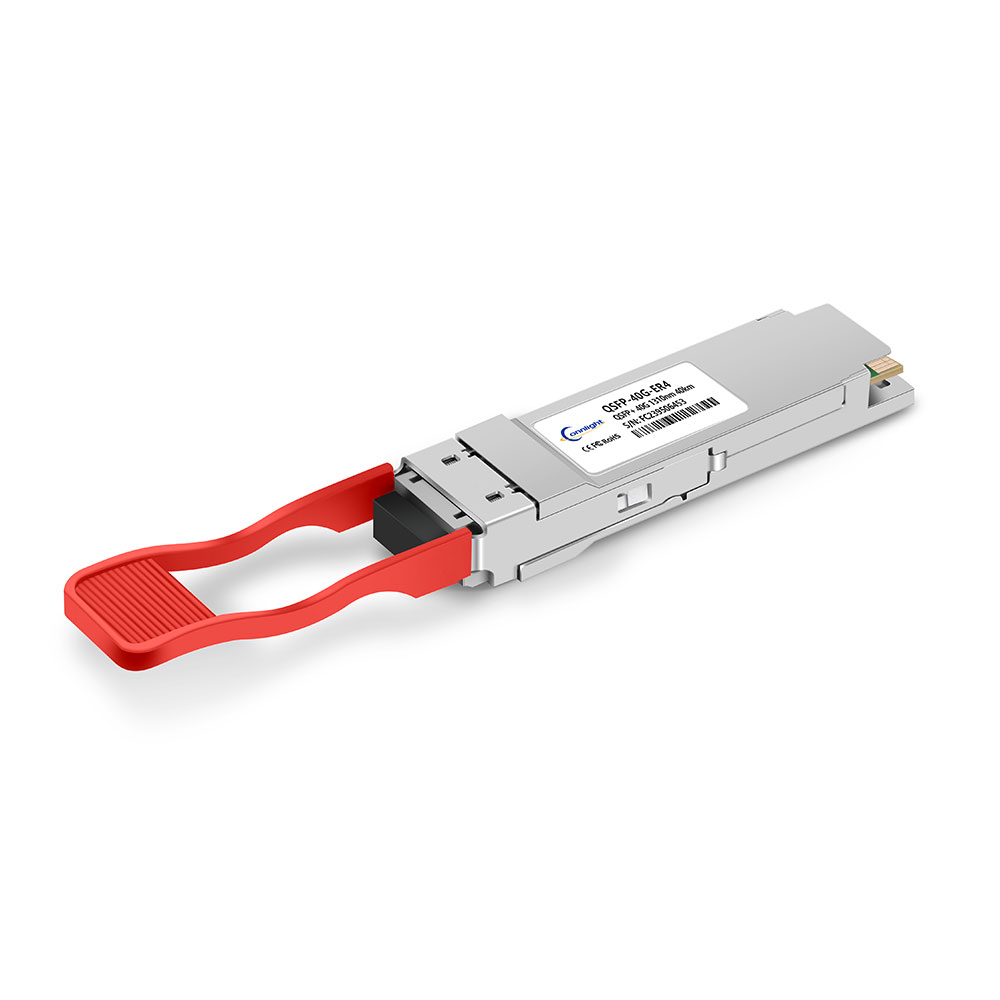

40GBASE-ER4 QSFP+ 1310nm 40km DOM Duplex LC/UPC SMF Transceiver Module
$440.00
- 100% OEM Compatible
- 30-Day Easy Return
- 5-Year Warranty
SKU:
62212
Category: 40G QSFP+
Description
QSFP-40G-ER4 Compatible 40G QSFP+ ER4 Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm SMF 40km LC DDM)
The QSFPP-40G-ER4 is a transceiver module designed for 40km optical communication applications. The design is compliant with 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDMoptical signals and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4CWDM channels signals and converts them to 4-channel output electrical data.
Product Details
P/N | QSFP-40G-ER4 | Vendor Name | Connlight |
Form Factor | QSFP+ | Max Data Rate | 40Gbps |
Wavelength | 1271nm, 1291nm 1311nm, 1331nm | Max Distance | 40km |
Connector | LC Duplex | Transmitter Type | 4 Lanes CWDM DFB |
Cable Type | SMF | Receiver Type | APD |
TX Power | -3.7~4.5dBm | Receiver Sensitivity | < -22dBm |
Protocols | OTN OTU3, 40G Ethernet, Infiniband, Fiber Channel, SATA/SAS3, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality Assurance
Excellent quality is the foundation of Connlight’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Comprehensive Testing
Every module is qualified through rigorous procedures and advanced equipment to ensure high-quality and reliable optical devices for you.
